Air-to-water heat pumps

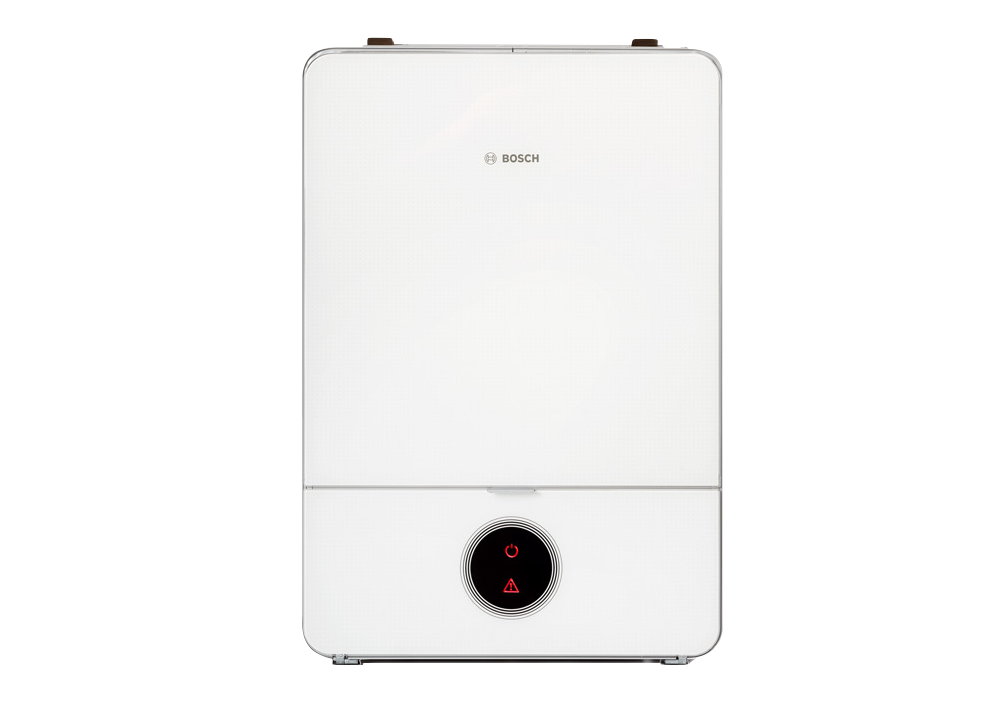

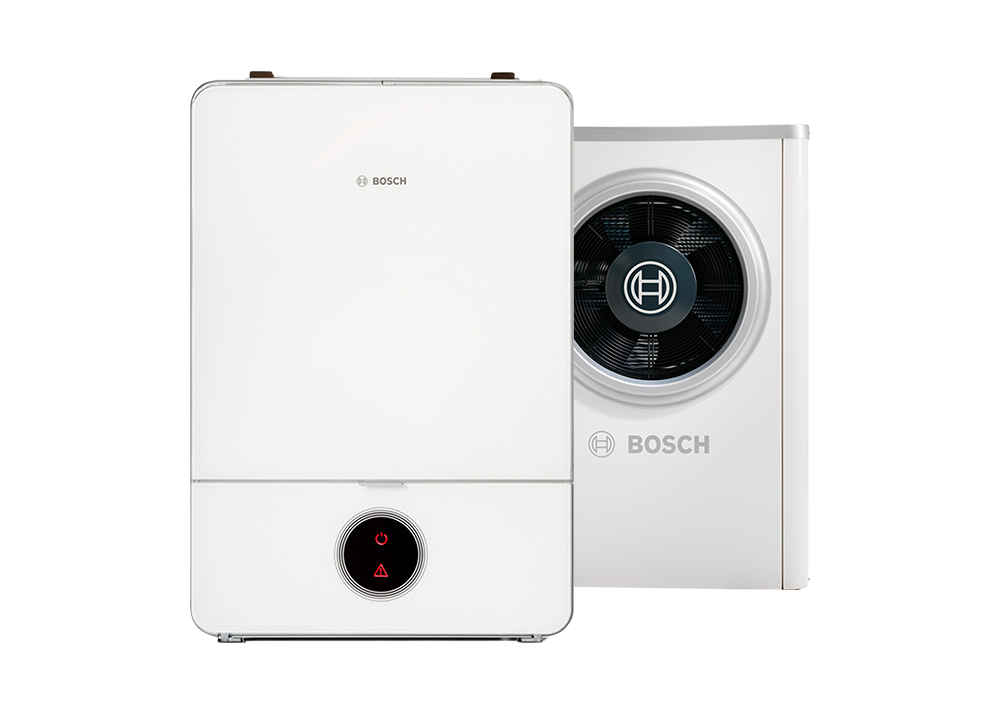

Bosch Compress 7000i AW 9

A++
Bosch Compress 7000i AW 9
Installed price from 11698 €

Heat pump - efficient and discreet Truly efficient - the Compress 7000i AW is one of the most energy efficient devices in its class. High efficiency (COP) provides significant energy savings in your home. Easily adjustable - the heat pump is equipped with a self-regulating compressor that adjusts the output depending on the heat demand. Maximum results are achieved with minimal consumption...

Order now Rate product

Description

Heat pump - efficient and discreet

Truly efficient - The Compress 7000i AW is one of the most energy efficient devices in its class. High efficiency (COP) provides significant energy savings in your home.
Easily adjustable - the heat pump is equipped with a self-regulating compressor that adjusts the output depending on the heat demand. Maximum results are achieved with minimal energy consumption.
Super Quiet - Variable speed fan and polypropylene foam housing ensure silent functionality. At night, the “quiet mode” is activated, which reduces the noise level by another 3 dB (A).
Easy cooling - you can also use the unit to cool your home on a hot day*
Easy to use via the Internet - thanks to the info display, using the heat pump is very easy and convenient. The device has a built-in IP interface, which allows you to conveniently control the pump via the Internet using remote control. All you need is a smartphone and the Bosch EasyRemote app.

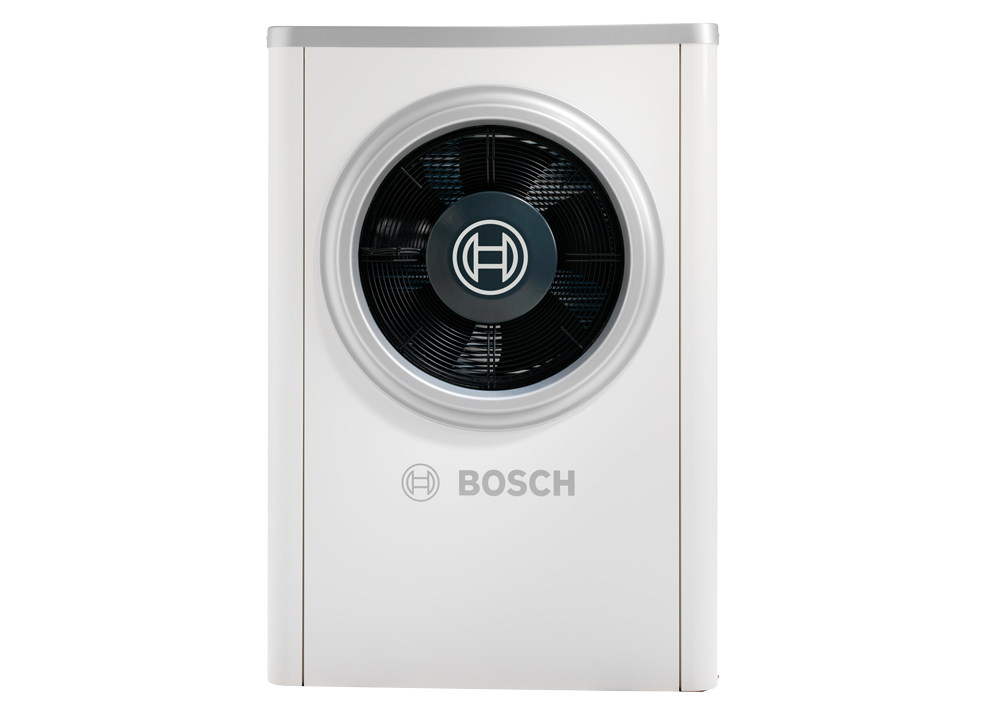

Exterior of 7000i AW9

Description

Reversible heat pump for heating, hot water supply and cooling (monoblock version).
Components: outdoor heat pump and 4 different indoor modules to choose from - can be installed on the wall or floor of the room.
Fast installation without the use of refrigerant. Only hydraulic and electrical solutions need to be created.
Compressor power adjustment (inverter)

Functionality

Energy efficiency class A++
High power factor
High water supply temperature up to 62°C and extremely low noise levels
Operates at temperatures down to -20°C
Designed for Scandinavian conditions

Technical details

Interior SKU
7000i AWE
Exterior SKU
CS 7000i AW9 OR-S
Heating
Heating power
9 kW
COP
4.93
Energy class (for heating)
A++
Temperature range of heating mode
62°C
Heating zone
160 m²
Cooling
Refrigerant
R410A
Dimensions
Dimensions (internal part)
650x600x700 mm
Dimensions (external part)
1380x930x440 mm
Noise level (outside)
53 dB(A)
Weight (inner part)
32 kg
Weight (outer part)
114 kg
Pipe length
3 - 20 m
Built-in boiler
No
Power supply
3 phase
Power of additional heating element
9 kW
Küttevõimsused / COP
Küttevõimsus / COP (+7°C juures / Küttevesi 35°C)
3.30 kW / 4.93 COP
Küttevõimsus / COP (+2°C juures / Küttevesi 35°C)
5.0 kW / 4.29 COP
Küttevõimsus / COP (-7°C juures / Küttevesi 35°C)
8.4 kW / 2.96 COP
Booklet
